12.1 Inch BOE GV121WXM-N80 Industrial/Medical TFT Display LVDS 450 Nits For HMI Product Introduction
GV121WXM-N80 Industrial TFT display is a 12.1inch IPS type full viewing angles screen with resolution of 1280x800 pixels. This industrial grade TFT LCD Display Module supports LVDS interface. this TFT LCD display GV121WXM-N80 is operated at 3.9V(Max value), Vdd is from 3.0V to 3.6V.
BOE GV121WXM-N80 is designed with capacitive touch panel, single touch and multi-touch optional. This TFT LCD module GV121WXM-N80 is with 450cd/m2 luminance. The TFT touch LCD GV121WXM-N80 is at good quality conditions. As an industrial-grade display, this product is widely used in industrial and medical applications, POS terminal, HMI, home automation, security system, etc.
| Product: | 12.1 Inch Industrial TFT Display |
| Resolution: | 1280 RGB X 800 |
| Surface Luminance: | 450 Cd/m2(nits) |
| Interface: | LVDS |
| Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
| Pin Number: | 30pins |
| Outline Dim.: | 278.0(H)x184.0(V)×6.76(T) (mm) |
| Active Area: | 262.656(H)x164.16(V) (mm) |
| Surface Treatment: | Hard Coating(3H) |
| Connection: | ZIF |
| Touch Screen: | CTP Optional |
| Display Colors: | 16.7 M |
| Operating Temp.: | -20℃ To +70℃ |
| Storage Temp.: | -30℃ To +80℃ |
| Compliance: | REACH & RoHS Compliant |
| Certificate: | ISO9001:2015 / ISO1400:2015 |

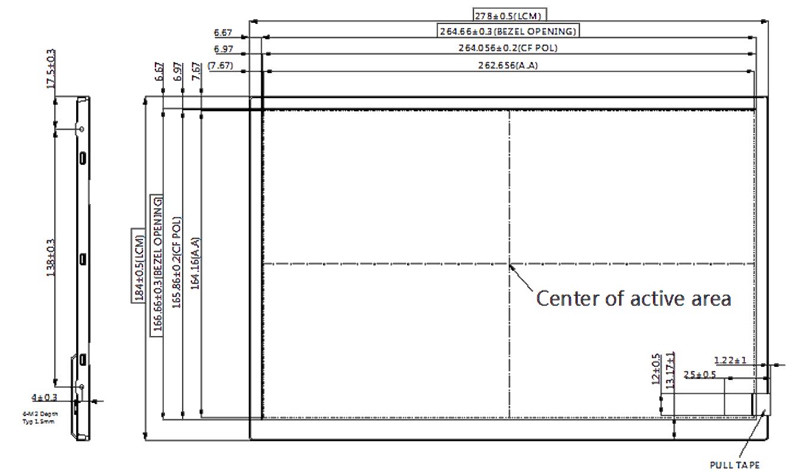

12.1 Inch BOE GV121WXM-N80 Industrial/Medical TFT Display LVDS 450 Nits For HMI Product Drawing
LCD Module Electrical Specifications
Absolute Maximum Ratings
Note 1 : Temperature and relative humidity range are shown in the figure below. Wet bulb temperature should be 39 ℃ max. and no condensation of water
Power Consumption of Backlight
Optical Characteristics

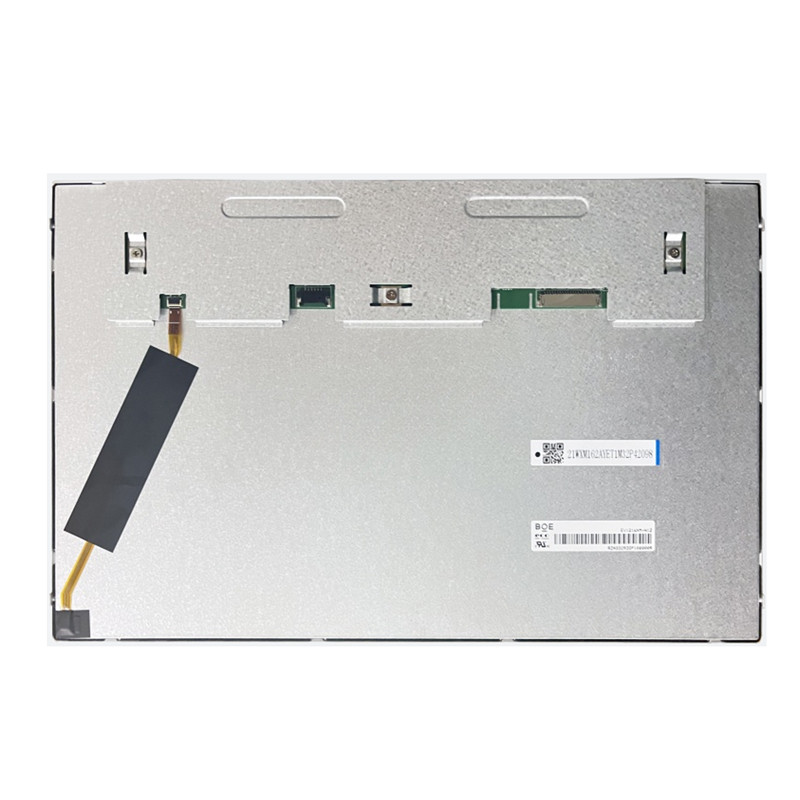

12.1 Inch BOE GV121WXM-N80 Industrial/Medical TFT Display LVDS 450 Nits For HMI Product Image
Factory Facilities and Certificates
Projected Capacitive (PCAP) Touch Screen
Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The projected capacitive touch screen from Saef Technology is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
