SFTO2150RX-7320AN 21.5" Industrial TFT LCD FHD 500 nits LVDS Interface Arctic-to-Desert Operation -30°C-80°C

  • 1
  • 2
  • 3

Brand Name : SAEF

Model Number : SFTO2150RX-7320AN

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 pcs

Price : the lowest market price guaranteed

Payment Terms : PayPal, T/T, Western Union, Ali-Pay, WeChat Pay

Supply Ability : 3000K pcs per month

Delivery Time : 1-5 weeks

Packaging Details : Standard Exportation Package

Screen Size : 21.5-inch Diagonal (546.1 mm)

Resolution : 1920×1080 Pixels (RGB Stripe)

Brightness : 500 cd/m²

Operating Temp. : -30°C to +80°C

Contrast Ratio : 1000:1 (Typ.)

Interface : Dual-Channel LVDS (2 Pixel/Clock)

Power Consumption : 20.96W

Response Time : 14ms GTG (Gray-to-Gray)

Viewing Angle : 89° All Directions (CR>10)

Backlight : 50,000 hours

Compliance : REACH & RoHS Compliant

Contact Now

Mission-Critical Industrial Display for Extreme Environments

The SFTO2150RX-7320AN sets the benchmark for reliability in industrial automation, medical imaging, and transportation systems. With 500 nits high brightness and FHD resolution, it delivers crisp visuals even under direct sunlight or low-temperature conditions.

Key Engineering Advantages
✅ Military-Grade Durability

  • Operates at arctic to desert temperatures (-30°C~80°C)

  • Survives 50G mechanical shocks (IEC 60068-2-27)

  • 240hrs humidity operation @50°C/80%RH

✅ Industrial Connectivity

  • Dual-channel LVDS interface (JAE FI-X30H connector)

  • DE-only timing mode @74.25MHz

  • 6-bit + Hi-FRC (16.7M colors)

✅ Zero Downtime Design

  • 50,000hr LED backlight (7020 chips, 10S6P×2)

  • <300mV input ripple tolerance

  • ±8kV contact ESD protection (IEC 61000-4-2)

Industrieanwendungen / Industrial Applications

  • Medizintechnik: Operationsmonitore, CT-Steuerkonsolen
  • Luftfahrt: Cockpit-Displays, Flugüberwachungssysteme
  • Schiffbau: Navigationsbrücken, Maschinenraum-Panels
  • Fabrikautomation: SCADA-Systeme, Robotersteuerungen

Wartung & Garantie / Maintenance & Warranty

  • Lebensdauer: 50.000 Stunden LED-Betrieb (@25°C)

  • Bildschirmeinbrennen verhindern: Sleep-Modus nach 30 Min Inaktivität

  • Garantie: 1 Jahr Funktionsersatz

  • ESD-Schutz: IPM-verpackt mit leitfähiger Folie

Request Customization

Contact sales2@saef.com.cn for IP65 sealed versions, capacitive touch options, or custom bezel designs.

Specifications

Items Specification Unit
Active Screen Size 21.5 inch
Number of Pixels 1920 X 1080 Pixel
Display Area 476.64 (H) x 268.11(V) mm
Bezel Opening 479.84(H) x 271.3(V) mm
Outline Dimension 495.6(H) x 292.4(V) x 10.35(D) mm
Luminance, White 500 (Center 1 point,Typ.) cd/m 2
Power Supply Input Voltage 12 (Typ) V
Power Supply Voltage 5.0 (Typ) V
Power Consumption Total = 20.96 (Typ.) W
Contrast Ratio 1000:1 --
Response time 14 (Typ.)(G to G) ms
Color temperature TBD K
Weight TBD(Typ) Kg
Operating Temperature -30 ~ 80 ℃
Storage Temperature -30 ~ 85 ℃

Optical Characteristics

Parameter Symbol Condition Min. Typ. Max. Unit

Viewing Angle

range

Horizontal

 Θ3

CR > 10

 85 89 - Deg.
Θ9 85 89 - Deg.

Vertical

 Θ12 85 89 - Deg.
Θ6 85 89 - Deg.
Luminance Contrast ratio CR

Θ = 0.

(Center)

Normal

Viewing

Angle

 450 500
Cell Transmittance Tr - 3.55 - %
White luminance uniformity ΔY 75 80 - %

Reproduction

of color

White

 Wx 0.283 0.313 0.343 -
Wy 0.299 0.329 0.359 -

Red

 Rx 0.607 0.637 0.667 -
Ry 0.320 0.350 0.380 -

Green

 Gx 0.266 0.296 0.326 -
Gy 0.590 0.620 0.650 -

Blue

 Bx 0.120 0.150 0.180 -
By 0.02 0.05 0.08 -

Response

Time

 GTG Tg 14 25 ms
Cross Talk CT

-

-

 2.0 %

Backlight Characteristics

Parameter Symbol Value Unit
Min. Typ. Max.
LED Light Bar Input Voltage Per Input Pin VPIN 46.5 48.5 51.5 V
LED Light Bar Input total current IPIN --- 360 mA
LED Life Time LLED 40000 50000 --- Hrs
Power Consumption PBL 17.46 W

External Dimensions

SFTO2150RX-7320AN 21.5" Industrial TFT LCD FHD 500 nits LVDS Interface Arctic-to-Desert Operation -30°C-80°C

Interface Pin Definition

Pin No Symbol Function
1 RXO0- Negative Transmission data of Pixel 0 (ODD)
2 RXO0+ Positive Transmission data of Pixel 0 (ODD)
3 RXO1- Negative Transmission data of Pixel 1 (ODD)
4 RXO1+ Positive Transmission data of Pixel 1 (ODD)
5 RXO2- Negative Transmission data of Pixel 2 (ODD)
6 RXO2+ Positive Transmission data of Pixel 2 (ODD)
7 GND Power Ground
8 RXOC- Negative Transmission Clock (ODD)
9 RXOC+ Positive Transmission Clock (ODD)
10 RXO3- Negative Transmission data of Pixel 3 (ODD)
11 RXO3+ Positive Transmission data of Pixel 3 (ODD)
12 RXE0- Negative Transmission data of Pixel 0 (EVEN)
13 RXE0+ Positive Transmission data of Pixel 0 (EVEN)
14 GND Power Ground
15 RXE1- Negative Transmission data of Pixel 1 (EVEN)
16 RXE1+ Positive Transmission data of Pixel 1 (EVEN)
17 GND Power Ground
18 RXE2- Negative Transmission data of Pixel 2 (EVEN)
19 RXE2+ Positive Transmission data of Pixel 2 (EVEN)
20 RXEC- Negative Transmission Clock (EVEN)
21 RXEC+ Positive Transmission Clock (EVEN)
22 RXE3- Negative Transmission data of Pixel 3 (EVEN)
23 RXE3+ Positive Transmission data of Pixel 3 (EVEN)
24 GND Power Ground
25 NC Not connection, this pin should be open
26 NC Not connection, this pin should be open
27 NC Not connection
28 VDD

Power Supply: +5V
29 VDD
30 VDD

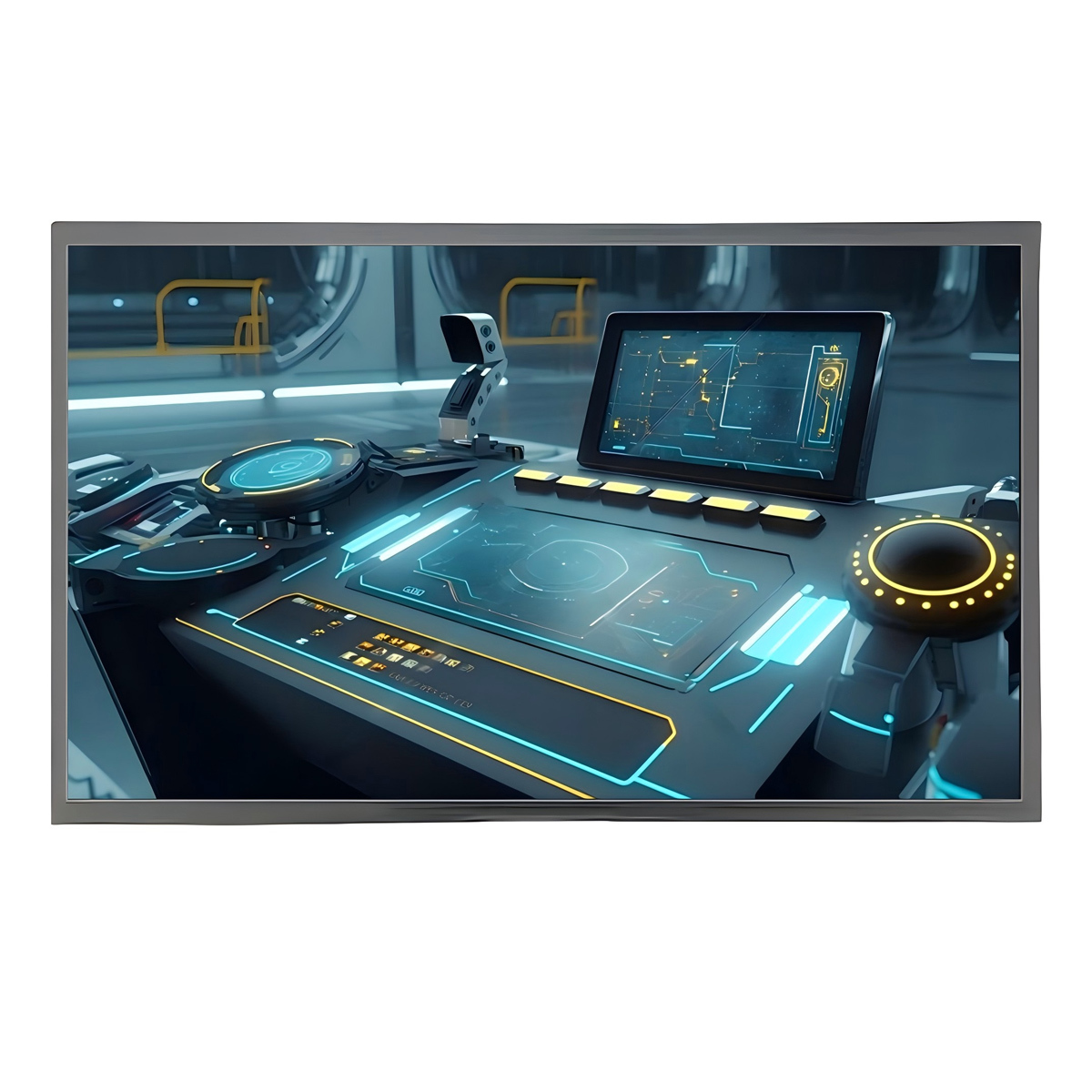

Product Image

SFTO2150RX-7320AN 21.5" Industrial TFT LCD FHD 500 nits LVDS Interface Arctic-to-Desert Operation -30°C-80°C

SFTO2150RX-7320AN 21.5" Industrial TFT LCD FHD 500 nits LVDS Interface Arctic-to-Desert Operation -30°C-80°C
