21.5" 2000Nits Sunlight Readable Industrial TFT LCD Display FHD 1920x1080 LVDS Wide Temp RoHS EU/US Stock Customizable

  • 1
  • 2
  • 3

Brand Name : SAEF

Model Number : SFTO2150RX-7321AN

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 pcs

Price : The lowest market price guaranteed

Payment Terms : PayPal, T/T, Western Union, Ali-Pay, WeChat Pay

Supply Ability : 3000K pcs per month

Delivery Time : 1-5 weeks

Packaging Details : Standard Exportation Package

Screen Size : 21.5-inch Diagonal

Resolution : 1920×1080 Pixels (RGB Stripe)

Brightness : 2000 cd/m²

Storage Temp. : -30°C to +80°C

Operating Temp. : -30°C to +85°C

Contrast Ratio : 1000:1 (Typ.)

Interface : LVDS 2-pixel/clock

Power Supply : 5V DC ±10%

Power Consumption : 37.22W (Typ.)

Surface Treatment : AG/AR/AF Coatings (Selectable)

Touch Technology : PCAP(CTP) Optional

Cover Glass : Gorilla Glass/Tempered Glass/PMMA

Touch Points : 10-Point Multi-Touch

Touch Interface : I²C/USB/RS232 (Configurable)

IC Options : EETI, ILITEK, Cypress, Goodix

Customization : Silk Printing, Logo, Cut-outs

Compliance : REACH & RoHS Compliant

Contact Now

Engineered for Extreme Industrial Environments

The SFT02150RX-7321AN Industrial TFT LCD delivers uncompromising visibility in harsh conditions. With 2000 nits brightness and 1000:1 contrast, it guarantees sunlight readability for outdoor applications. Certified for -30°C to +80°C operation and backed by 50,000-hour backlight endurance, it’s the ideal solution for factory automation, heavy machinery, and critical infrastructure.

Key Industrial Advantages

  • Rugged Reliability
    Passes 50G shock/vibration tests (MIL-STD compliant) and 85°C/90%RH humidity endurance.

  • Crystal-Clear Visibility
    89° wide viewing angles, 80% white uniformity, and anti-glare surface (Haze 25%, 3H hardness).

  • Seamless Integration
    LVDS interface with DE-only mode + landscape/portrait flexibility for embedded systems.

  • Global Compliance
    Meets EU RoHS 2011/65/EU, REACH 1907/2006/EC, and US environmental standards.

  • Zero Image Retention
    Optimized for 24/7 operation with dynamic sleep mode recommendations.

CTP Options (Customization-to-Product)

Tailored for Your Industrial Workflow

1. Standard Ready-Ship Model
→ SFT02150RX-7321AN: 2-week global delivery with 1-year warranty.

2. Semi-Custom Solutions

  • Environmental Hardening:
    ► Conformal coating for chemical resistance
    ► -30°C to +85°C extended temperature kits

  • Enhanced Usability:
    ► PCAP/Resistive touch integration (IP65 sealed)
    ► EMI shielding for sensitive environments

  • Mechanical Adaptations:
    ► Custom bezels (stainless steel/aluminum)
    ► VESA mount compatibility

3. Full ODM Customization

  • Application-Specific Redesigns:
    ► Military-grade driver boards (MIL-STD-810)
    ► ATEX-certified housings for explosive atmospheres

  • Prototyping & Low-Volume:
    ► No MOQ for R&D batches
    ► 8-week custom development cycle

Application

  • industrial control systems

  • medical diagnostic equipment
  • marine navigation devices
  • aerospace instrumentation
  • defense technology interfaces
  • advanced laboratory automation systems

Why Choose This Module?

  • Deployed in 3000+ harsh-environment systems globally. SAEF’s displays enable Siemens Healthcare, Raytheon, and maritime OEMs to maintain visibility in extreme conditions with zero field failures since 2020.

Request Customization

Contact sales2@saef.com.cn for IP65 sealed versions, capacitive touch options, or custom bezel designs.

Specifications

Parameter Specification Unit
Active area 476.64(H) × 268.11(V) mm
Number of pixels 1920(H) ×1080(V) pixels
Pixel pitch 0.24825(H) x 0.24825(V) mm
Pixel arrangement RGB Vertical stripe -
Display colors 16.7M colors
Display mode Normally Black -
Dimensional outline 495.6(H) × 292.4(V) × 13.6(D) typ. mm
Possible Display Type Landscape and Portrait Enabled -
Weight TBD Kg
Bezel width (L/R/U/D) 7.9/7.9/10.5/10.5 mm
Surface Treatment Haze 25%, 3H -
Back-light Lower side 1-LED Light bar Type -

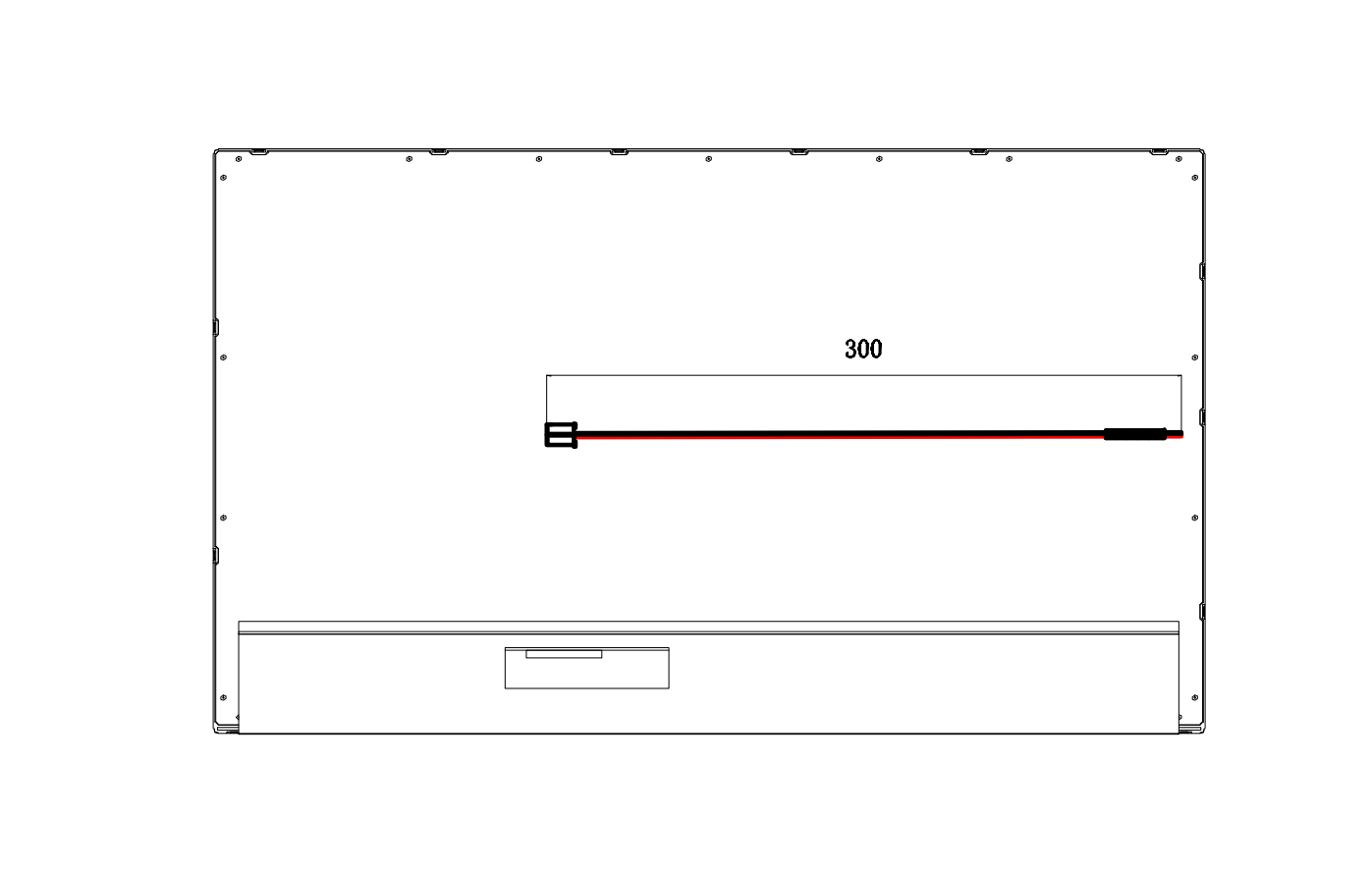

External Dimensions

21.5" 2000Nits Sunlight Readable Industrial TFT LCD Display FHD 1920x1080 LVDS Wide Temp RoHS EU/US Stock Customizable

21.5" 2000Nits Sunlight Readable Industrial TFT LCD Display FHD 1920x1080 LVDS Wide Temp RoHS EU/US Stock Customizable

Interface Pin Definition

Pin No. Symbol Description
1 RxO0- Negative LVDS differential data input (Odd data)
2 RxO0+ Positive LVDS differential data input (Odd data)
3 RxO1- Negative LVDS differential data input (Odd data)
4 RxO1+ Positive LVDS differential data input (Odd data)
5 RxO2- Negative LVDS differential data input (Odd data)
6 RxO2+ Positive LVDS differential data input (Odd data)
7 BIST BIST
8 RxOCLK- Negative LVDS differential clock input (Odd clock)
9 RxOCLK+ Positive LVDS differential clock input (Odd clock)
10 RxO3- Negative LVDS differential data input (Odd data)
11 RxO3+ Positive LVDS differential data input (Odd data)
12 RxE0- Negative LVDS differential data input (Even data)
13 RxE0+ Positive LVDS differential data input (Even data)
14 GND Ground
15 RxE1- Negative LVDS differential data input (Even data)
16 RxE1+ Positive LVDS differential data input (Even data)
17 GND Ground
18 RxE2- Negative LVDS differential data input (Even data)
19 RxE2+ Positive LVDS differential data input (Even data)
20 RxECLK- Negative LVDS differential clock input (Even clock)
21 RxECLK+ Negative LVDS differential clock input (Even clock)
22 RxE3- Negative LVDS differential data input (Even data)
23 RxE3+ Positive LVDS differential data input (Even data)
24 GND Ground
25 CTL CTL_DVR
26 CE CE_DVR
27 NC No connection
28 VDD Power Supply Input Voltage 5V
29 VDD Power Supply Input Voltage 5V
30 VDD Power Supply Input Voltage 5V

Optical Characteristics

Parameter Symbol Condition Min. Typ. Max. Unit

Viewing Angle

range

Horizontal

 Θ3

CR > 10

 85 89 - Deg.
Θ9 85 89 - Deg.

Vertical

 Θ12 85 89 - Deg.
Θ6 85 89 - Deg.
Luminance Contrast ratio CR

Θ = 0.(Center)

 700 1000
Luminance of White Yw 1800 2000 - cd/m2
White luminance uniformity ΔY 75 80 - %

Reproduction of color

White

 Wx 0.283 0.313 0.343 -
Wy 0.339 0.369 0.399 -

Red

 Rx 0.608 0.638 0.668 -
Ry 0.319 0.349 0.379 -

Green

 Gx 0.277 0.307 0.337 -
Gy 0.591 0.621 0.651 -

Blue

 Bx 0.112 0.142 0.172 -
By 0.063 0.066 0.069 -

Response Time

 GTG Tg 14 25 ms
Cross Talk CT

-

-

 2.0 %
NTSC 70 72 74 %
Display uniformity 75 80 - %

Backlight Characteristics

Item Symbol Min. TYP. Max. Unit
BLU current I -- 1050 -- mA
BLU voltage V -- 50 50.6 V
BLU Power consumption PBLU -- 52.5 -- W
Operating Lifetime Hr 40,000 50,000 -- Hour

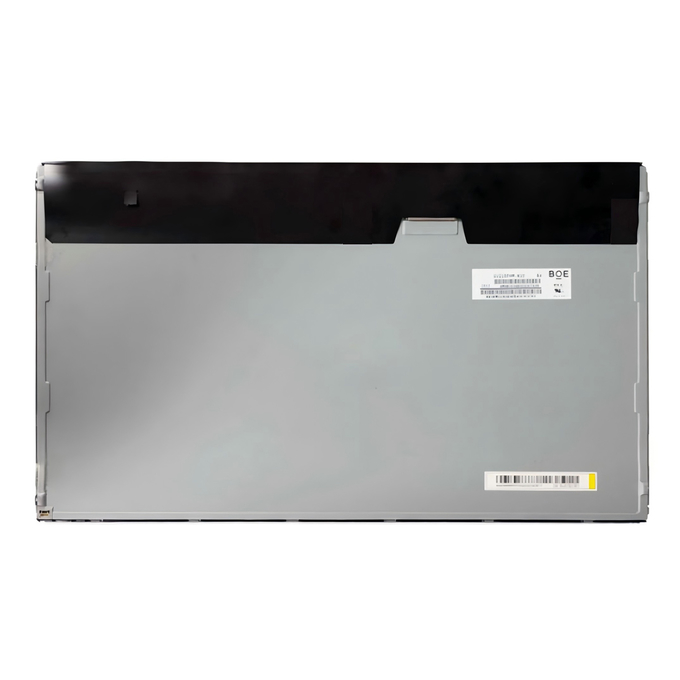

Product Image

21.5" 2000Nits Sunlight Readable Industrial TFT LCD Display FHD 1920x1080 LVDS Wide Temp RoHS EU/US Stock Customizable

21.5" 2000Nits Sunlight Readable Industrial TFT LCD Display FHD 1920x1080 LVDS Wide Temp RoHS EU/US Stock Customizable
