Industrial-Grade 5.6" TFT LCD Display Module 640x480 Model SFTO560SH-7316AN / AT056TN52 V.3 for Optimal Performance

  • 1
  • 2
  • 3

Brand Name : SAEF

Model Number : SFTO560SH-7316AN (Based on AT056TN52 V.3)

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 pcs

Price : the lowest market price guaranteed

Payment Terms : PayPal, T/T, Western Union, Ali-Pay, WeChat Pay

Supply Ability : 3000K pcs per month

Delivery Time : 1-5 weeks

Packaging Details : Standard Exportation Package

Screen Size : 5.6-inch Diagonal

Resolution : 640×480 Pixels (RGB Stripe)

Brightness : 250 cd/m²

Operating Temp. : -20°C to +70°C

Technology : TN TFT, Transmissive

Interface : 24-bit Digital RGB

Backlight : 15 LEDs, 20,000-30,000 Hours Lifespan

Power Supply : Dual Voltage

Compliance : REACH & RoHS Compliant

Contact Now

Industrial-Grade 5.6" TFT Display for Harsh Environments


The SFTO560SH-7316AN TFT LCD module delivers uncompromising performance in demanding industrial applications. Engineered to AT056TN52 V.3 specifications, this 5.6-inch display features a sharp 640×480 resolution with anti-glare surface treatment, ensuring clear visibility under high ambient light (250 cd/m² brightness, 500:1 contrast).

Built for Reliability
Operate seamlessly from -20°C to +70°C with 100G mechanical shock resistance. Ideal for factory automation, medical devices, and transportation systems where stability is critical. The 24-bit RGB interface supports 16.7M colors, while dual-voltage drive eliminates noise interference in electrically chaotic environments.

Key Advantages for Engineers
✅ Extended Backlight Lifespan: 15 white LEDs (30,000 hours @ 25°C)
✅ Flexible Integration: Scanning direction control (L/R, U/D pins)
✅ Rugged Protection: Dust-sealed construction passes 240Hrs humidity tests
✅ Simplified Compliance: ROHS/REACH certified, Pb-free soldering compatible

Applications

  • Industrial HMIs & Control Panels

  • Portable Test Equipment

  • Medical Monitoring Devices

  • Outdoor Kiosks & Transportation Systems

Technical Highlights

  • Pixel Pitch: 58.8×176.4μm

  • Response Time: 25ms (Typ.)

  • Viewing Angles: 70°(H)/50°(V)

  • Power Sequencing: Optimized ON/OFF timing

  • Warranty: 1-year functional defect coverage

Compliance Ready
Meets EU ROHS 2011/65/EU, REACH 1907/2006/EC, and EMC directives for seamless integration into global industrial equipment.

Ordering & Support
Contact our Shenzhen HQ for volume pricing, custom FPC tail options, and technical documentation. All modules include electrostatic-safe packaging and IEC-compliant datasheets.

Request Customization

Contact sales2@saef.com.cn for IP65 sealed versions, capacitive touch options, or custom bezel designs.

Specifications

Features Details
Display Size(Diagonal) 5.6”
LCD type TN TFT
Display Mode Transmissive / Normally White
Resolution 640 RGB x 480
View Direction 12 O’CLOCK
Gray Scale Inversion Direction 6 O’CLOCK
Module Outline 126.5(H) x 100(V) x 5.7(T) (Note1)
Active Area 112.896(H) x84.672(V)
Pixel Size 58.8*3 x 176.4
Pixel Arrangement RGB
Polarizer Surface Treatment Anti-glare
Driver IC ILI6192A-01&ILI5481A
Display Colors 16.7M
Interface 24 Bits-RGB Interface
With or Without Touch Panel Without
Operating Temperature -20～70
Storage Temperature -30～80
Weight 100

Optical Characteristics

Item Symbol Condition Specification Unit
Min. Typ. Max.

Luminance on

TFT( If =20mA/LED)

Lv

Normally

viewing angle θX = φY =0º

200

250

-

cd/m²
Contrast ratio(See 6.3) CR 600 1000 -

Response time

(See 6.2)

TR+TF

-

 25 50

ms
White XW 0.25 0.30 0.35
YW 0.26 0.31 0.36

Viewing Angle

(See 6.4)

 Horizontal θX+

Center CR≥10

 60 70 -

Deg.
θX- 60 70 -
Vertical φY+ 40 50 -
φY- 60 70 -
NTSC Ratio(Gamut) - 51.2 - %

Backlight Characteristics

Item Symbol Condition Min. Typ. Max. Unit
Backlight Voltage VLED Ta=25 ºC, IF=20mA/LED - 9.3 - V
Backlight Current ILED Ta=25 ºC, VF=3.1V/LED - 100 - mA
Power dissipation PD - 930 - mW
Uniformity Avg 75 80 - %
LED working life(25℃) - 20000 30000 - Hrs
Drive method Constant current
LED Configuration 15 White LEDs(3 LEDs in one string and 5 groups in parallel)

External Dimensions

Industrial-Grade 5.6" TFT LCD Display Module 640x480 Model SFTO560SH-7316AN / AT056TN52 V.3 for Optimal Performance

Interface Pin Definition

Pin No. Symbol I/O Function
1 VLED+ P Power for LED backlight anode
2 VLED+ P Power for LED backlight anode
3 VLED- P Power for LED backlight cathode
4 VLED- P Power for LED backlight cathode
5 GND P Power ground
6 VCOM I VCOM input
7 VCC P Power supply for digital circuit
8 MODE I DE or HV mode control
9 DE I Data Enable
10 VS I Vsync signal input
11 HS I Hsync signal input
12 B7 I Blue data input (MSB)
13 B6 I Blue data input
14 B5 I Blue data input
15 B4 I Blue data input
16 B3 I Blue data input
17 B2 I Blue data input
18 B1 I Blue data input
19 B0 I Blue data input(LSB)
20 G7 I Green data input(MSB)
21 G6 I Green data input
22 G5 I Green data input
23 G4 I Green data input
24 G3 I Green data input
25 G2 I Green data input
26 G1 I Green data input
27 G0 I Green data input(LSB)
28 R7 I Red data input(MSB)
29 R6 I Red data input
30 R5 I Red data input
31 R4 I Red data input
32 R3 I Red data input
33 R2 I Red data input
34 R1 I Red data input
35 R0 I Red data input(LSB)
36 GND P Power ground
37 DCLK I Sample clock
38 GND P Power ground
39 L/R I Select left to right scanning direction
40 U/D I Select up or down scanning direction
41 VGH I Positive power for scan driver
42 VGL I Negative power for scan driver
43 AVDD P Power supply for analog circuit
44 RESET I Reset
45 POL O Polarity select for the line inversion control signal
46 VCOM I VCOM input
47 NC - No Connector
48 NC - No Connector
49 NC - No Connector
50 NC - No Connector

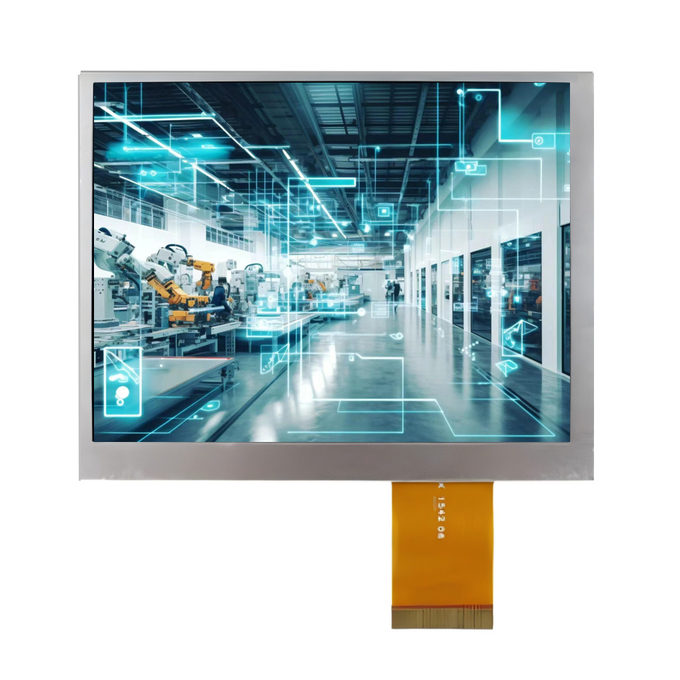

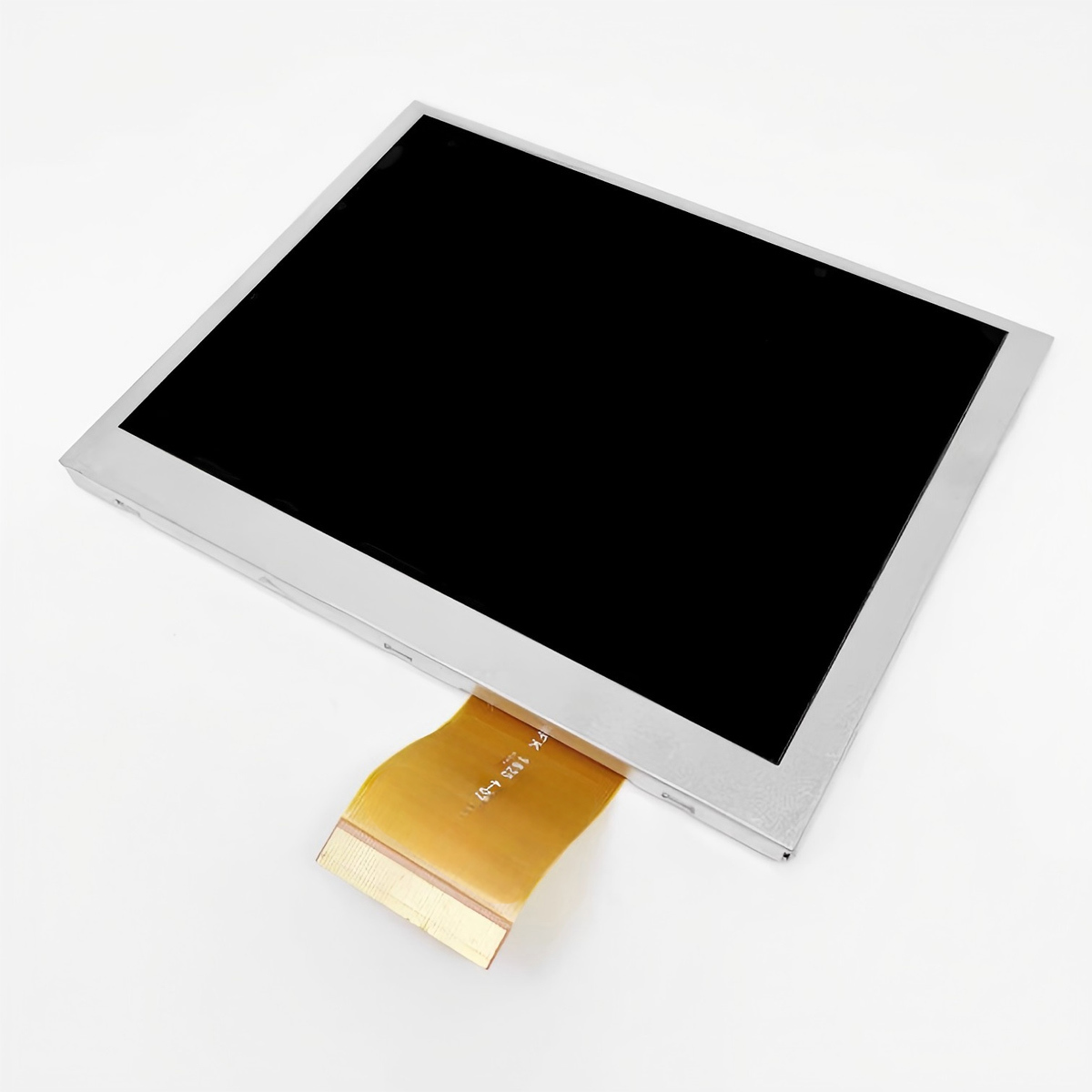

Product Image

Industrial-Grade 5.6" TFT LCD Display Module 640x480 Model SFTO560SH-7316AN / AT056TN52 V.3 for Optimal Performance

Industrial-Grade 5.6" TFT LCD Display Module 640x480 Model SFTO560SH-7316AN / AT056TN52 V.3 for Optimal Performance
